Combined
validator NV1

Validator photo in header
Logo Pixel
Logo Beesset
Modularity icon
Modularity

Modular device, the ability to choose various functions and components depending on the needs and requirements of the customer.

More →
Payment icon
Payments

Possibility of integration with the most popular terminals. Contactless payments with the use of payment cards, telephones, watches and others. Support for various tariffs, ie CICO, Retail and Known Fare.

More →
Additional functions icon
Additional features

The possibility of using a 2D / 1D code scanner and a printer for the purpose of validating paper tickets. Beacon - Realization of the idea of ​​IoT (internet of things).

More →
Housing and assembly icon
Housing and assembly

Vibration and impact resistant housing made of durable plastic.

More →
Security icon
Security

Payment data tokenization. PA-DSS and PCI DSS certification of the back-end MTM System is not required.

More →
Interaction icon
Interaction with devices and systems

Autonomous mode of operation or cooperation with vehicle's on-board computer.

More →
Interface icon
Interface

Readable, ergonomic and multilingual user interface operated by 7" capacitive touch screen.

More →

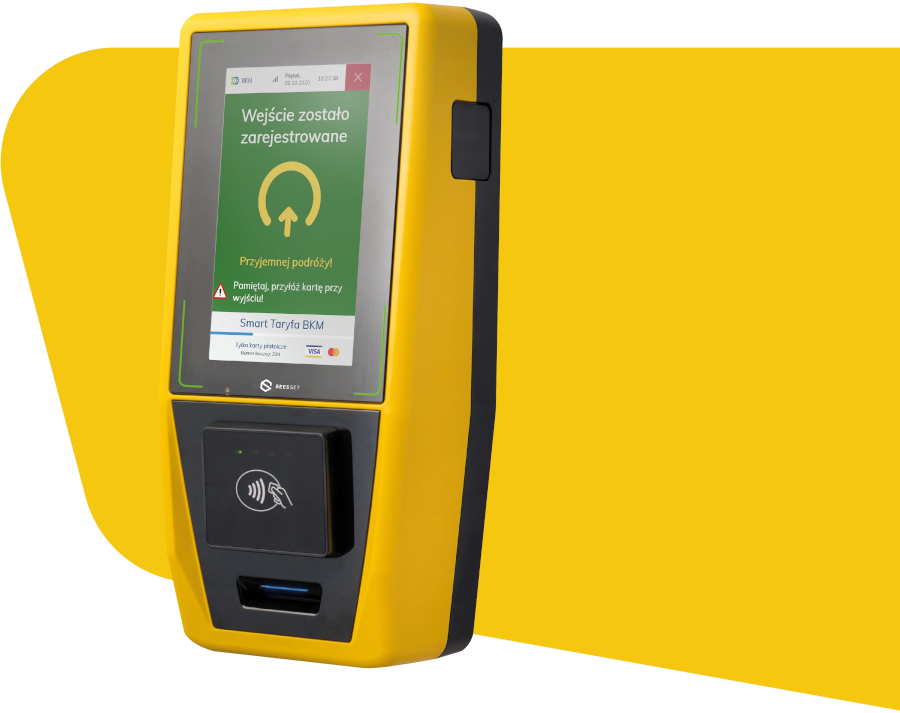

Specification

The NV1 Validator is equipped with a color 7" capacitive touch screen 1024 x 600 pixel resolution. Customizable RGB diodes are placed around the screen informing e.g. about the transaction status. Communication with the device it can be done via the Ethernet or RS485 interface. The device allows installation of various contactless payment terminals, including PAX IM700, Verifone UX 410, Ingenico iUC160B, Ingenico Open / 1500, UIC680 ​​and others. It is possible expansion and personalization of the machine with a 2D / 1D barcode scanner, Beacon and a printer with the function of mechanical damaging the ticket. Validator dimensions are 350 mm x 165 mm x 112 mm (height x width x depth). The weight of the full set does not exceeds 3 kg.

More →
Validator photo in specification section
Validator photo in separator section

Validator NV1

Are you interested in presenting the device or getting more details about the solution?
Please contact us!

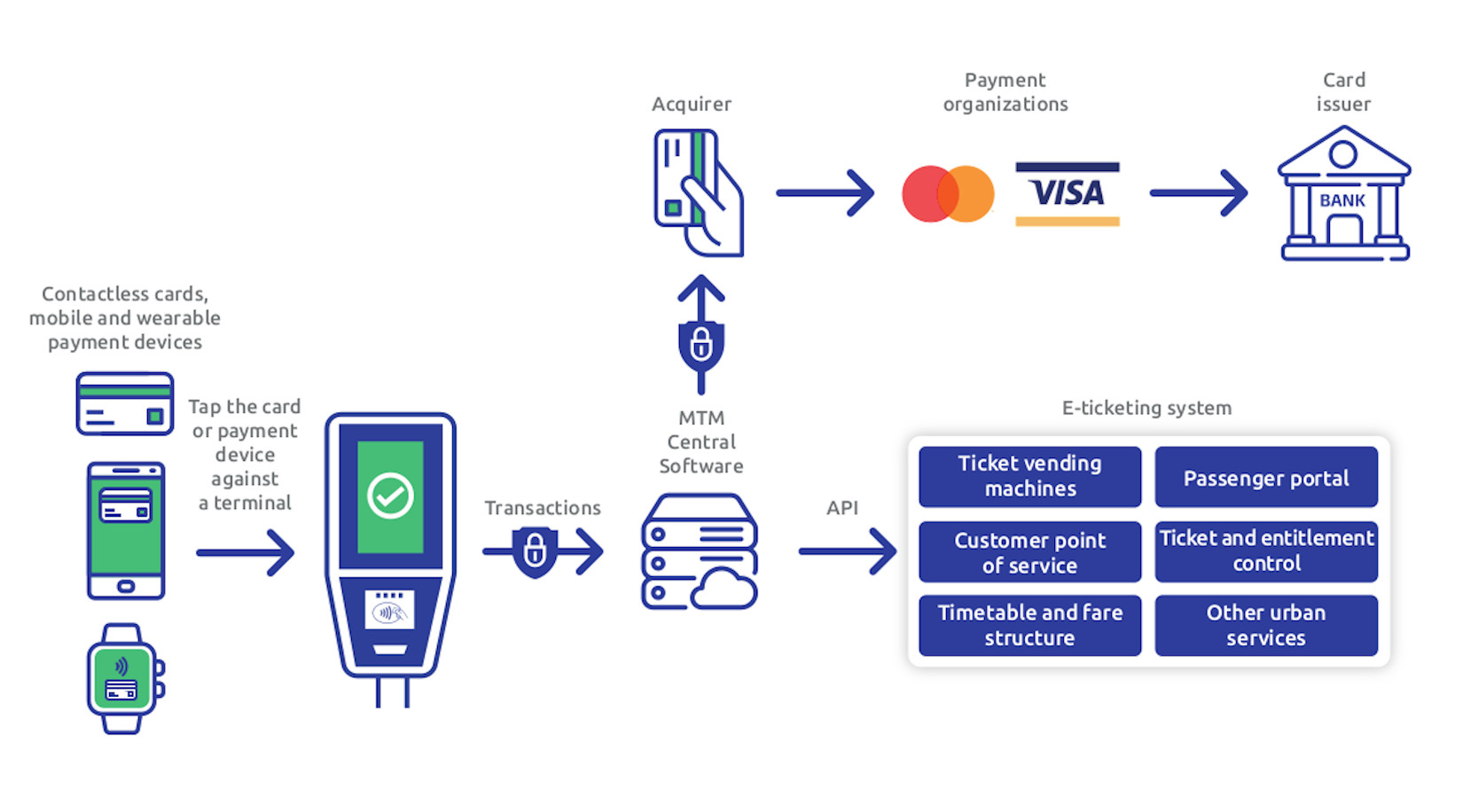

Ecosystem

NV1 validators are managed with the participation of the central MTM system.

More →
Ecosystem scheme

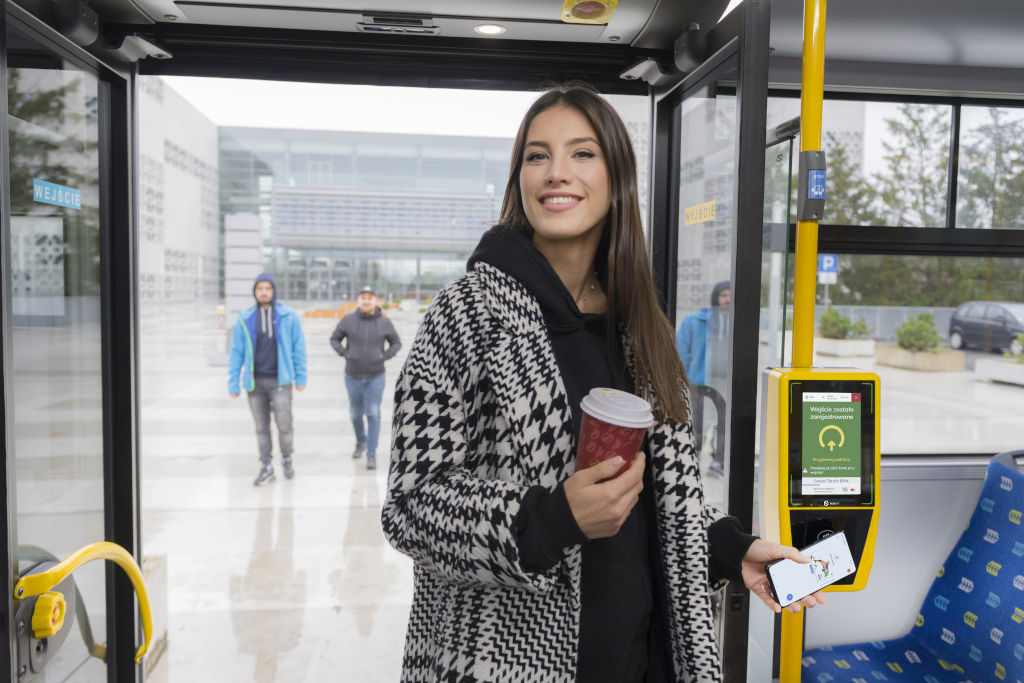

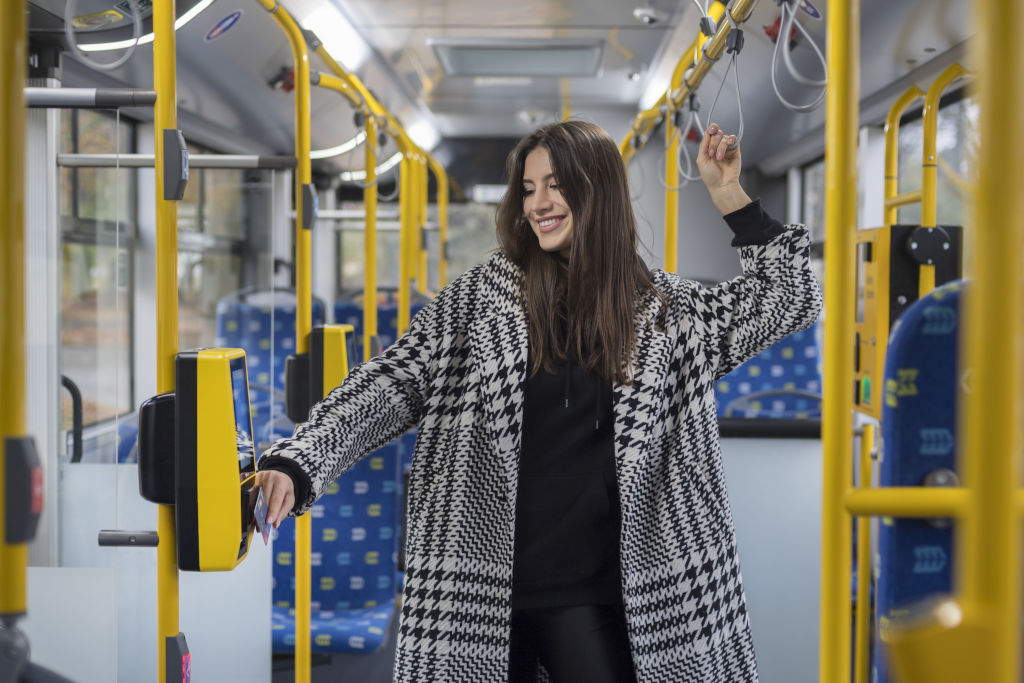

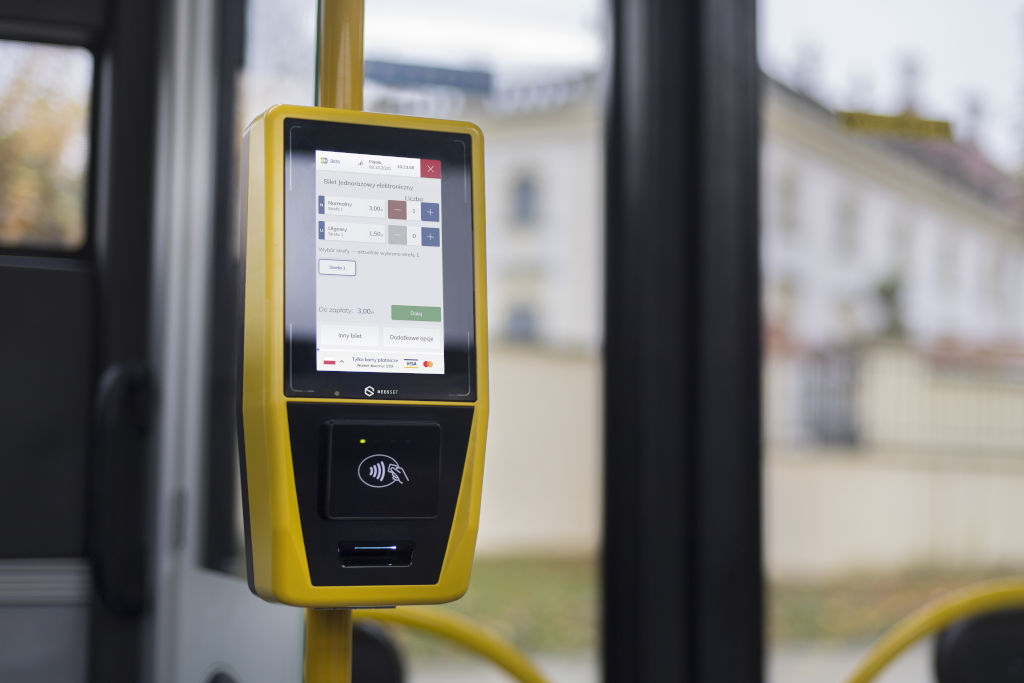

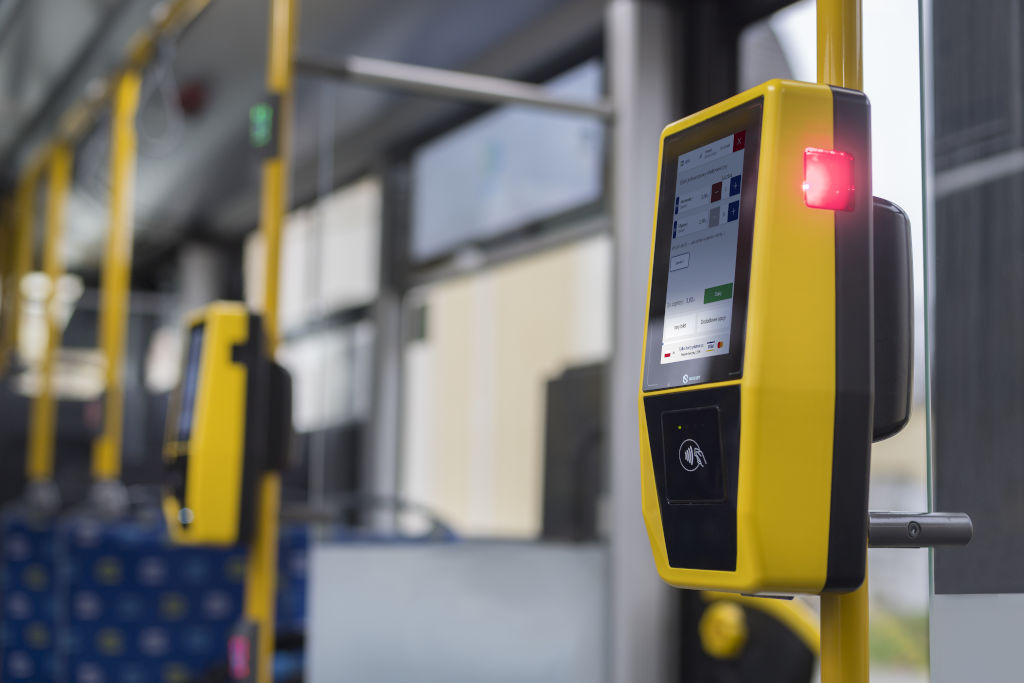

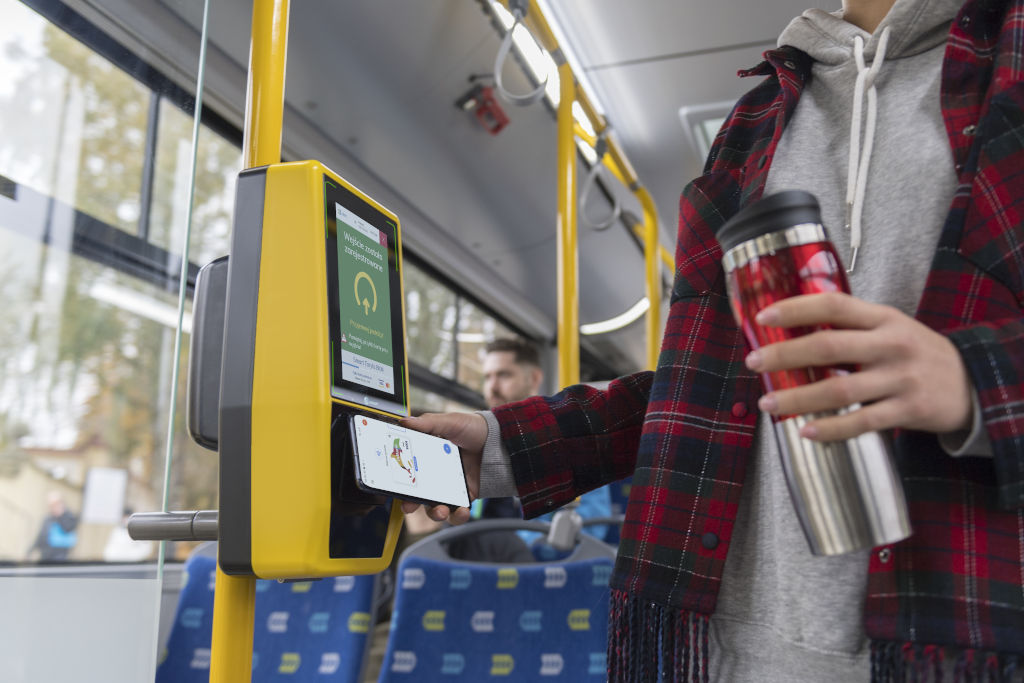

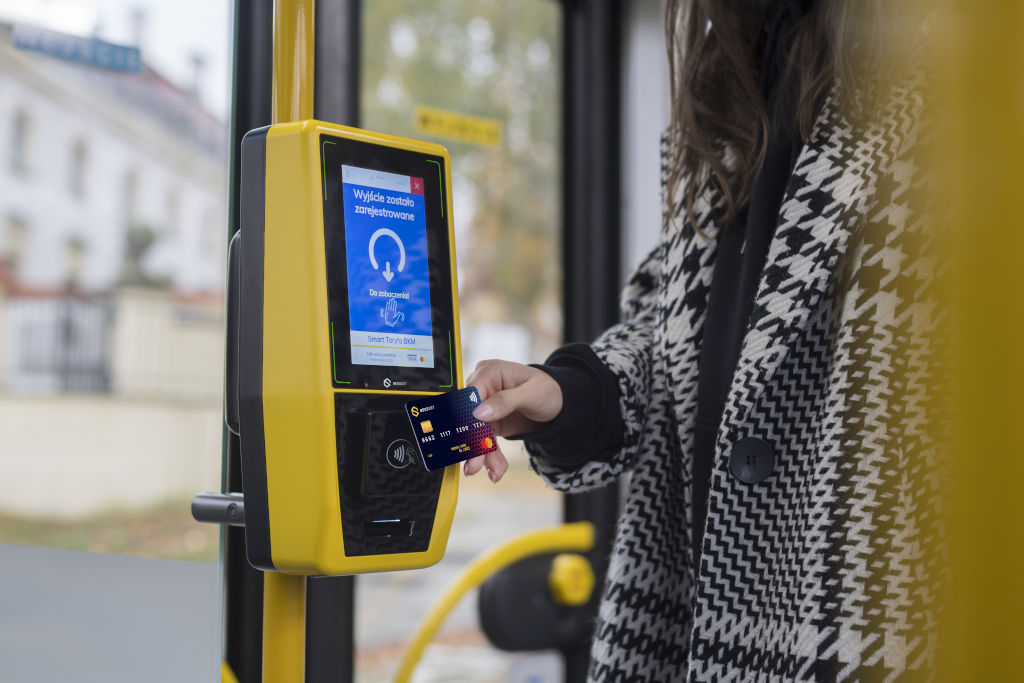

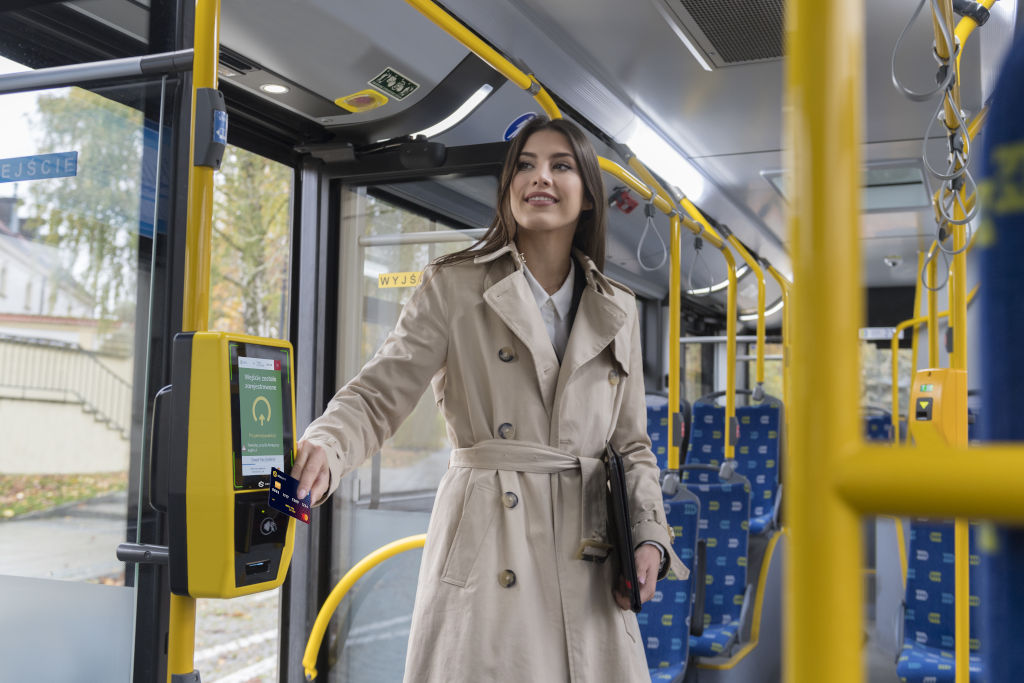

First photo in gallery Second photo in gallery Third photo in gallery Fourth photo in gallery Fifth photo in gallery Sixth photo in gallery Seventh photo in gallery Eight photo in gallery

Contact





Localization icon

ul. Dreszera 1 lok. 10
15-797 Białystok, POLAND

Web icon

www.beesset.com
Post icon

office@beesset.com

Phone icon

tel. +48 534 134 364, +48 574 166 458

Facebook icon Youtube icon Linkedin icon
Localization icon

ul. Bogdana Raczkowskiego 5
85-862 Bydgoszcz, POLAND

Web icon

www.pixel.pl
Post icon

pixel@pixel.pl

Phone icon

tel. +48 52 324 16 10

Facebook icon Youtube icon Linkedin icon
×
Modularity icon

Modularity

Check icon
Adaptation of components and functions according to customer’s needs and requirements without changing the housing
Modularity icon

Modularity

Check icon
Adaptation of components and functions according to customer’s needs and requirements without changing the housing
Check icon
Device holder can be adapted to the existing infrastructure
Payment icon

Payments

Check icon
Integration with the most popular unattended contactless payment terminals such as PAX IM700, Verifone UX 410, Ingenico iUC160B, Ingenico Open/1500 and UIC680
Check icon
Transactions processed by Visa, Mastercard and Maestro
Check icon
Contactless payments with payment-enabled mobile phones, watches and other devices
Check icon
Compatible with MIFARE, DESFire, Java Card and FeliCa city cards
Check icon
Various ticket tariffs support: CICO (Check In/Check Out), Retail and Known Fare (fixed fare) and Mass Transit Transaction/Pay As You Go (MTM System aggregates the billing period spend and then settles e.g. at the end of the day)
Additional functions icon

Additional features

Check icon
Configurable tickets stamping by a dot-matrix printer
Check icon
2D/1D barcode scanner with object presence and type autodetection feature (paper, smartphone); barcodes can be used to carry tickets, discounts and other data
Check icon
Beacon module for broadcasting information about vehicle route, current fare and other useful data
Housing and assembly icon

Housing and assembly

Check icon
Vibration and impact resistant housing made of durable plastic with patent lock
Check icon
VDI 21 housing structure for easier cleaning, disinfection and protection against soiling
Check icon
Simple and quick device installation or removal
Security icon

Security

Check icon
Payment data tokenization
Check icon
PA-DSS and PCI DSS certification of the back-end MTM System is not required
Security icon

Security

Check icon
Payment data tokenization
Check icon
PA-DSS and PCI DSS certification of the back-end MTM System is not required
Check icon
Protection against device tampering and ticket counterfeit
Check icon
Built-in enhanced Common Criteria EAL6+ based security for system and communication protection against attacks
Check icon
Slots for the external security modules
Interaction icon

Interaction with devices and systems

Check icon
Autonomous mode of operation or cooperation with vehicle's on-board computer
Check icon
Hardware and software self-diagnostics for continuous and reliable operation
Check icon
MTM System for remote device monitoring and management, software updates distribution, ticket tariff and user interface creation including multiple language support, instant display advertisements and announcements, data analysis and dynamic fee calculation according to a customer's tariff, reporting, cooperation with an acquirer, integration with existing electronic ticketing systems and passenger portals
Interface icon

Interface

Check icon
7" capacitive touch screen, automatic and manual brightness adjustment
Check icon
Readable, ergonomic and multilingual user interface: payment for tickets, displaying passenger information, advertising and announcements, online purchase and orders management
Check icon
Adaptive interface for disabled users
Check icon
Audio messages and visual signalling via LEDs backlight
Interface icon

Interface

Check icon
7" capacitive touch screen, automatic and manual brightness adjustment
Check icon
Readable, ergonomic and multilingual user interface: payment for tickets, displaying passenger information, advertising and announcements, online purchase and orders management
Check icon
Adaptive interface for disabled users
Check icon
Audio messages and visual signalling via LEDs backlight
Check icon
Fast processing and rapid response to user’s actions
Check icon
User interface design and configuration according to the customer’s requirements

MTM System

Check icon
Integrated back-end solution
Check icon
Passenger journeys registration in the Entry / Exit mode (Check In / Check Out)
Check icon
Integration with existing electronic ticketing systems and passenger portals
Check icon
Handling of payment card and devices as a carrier for seasonal tickets
Check icon
Visa, Mastercard and Maestro transaction clearing using various settlement models:
- Retail and Known Fare (fixed fare prices)
- Mass Transit Transaction / Pay As You Go (aggregate amount calculation based on all completed journeys at the end of the selected billing period like end of the day or month)
Check icon
Ability to define and create a variety of tariff types based on rules such as travel bus stop, zones, distance and time regarding the collected information about the journey like day of the week, entry/exit stop, etc.
Check icon
Cooperation with an acquirer for transaction processing that includes debt recovery
Check icon
Device user interface design and configuration (screen layout, language support, audio messages)
Check icon
Advertisements and announcements management
Check icon
Beacons configuration
Check icon
Remote device connection, monitoring and diagnostics, locking and unlocking
Check icon
Distribution of the validator and ticket machine software updates

MTM System

Check icon
Integrated back-end solution
Check icon
Passenger journeys registration in the Entry / Exit mode (Check In / Check Out)
Check icon
Integration with existing electronic ticketing systems and passenger portals
Check icon
Handling of payment card and devices as a carrier for seasonal tickets
Check icon
Visa, Mastercard and Maestro transaction clearing using various settlement models:
- Retail and Known Fare (fixed fare prices)
- Mass Transit Transaction / Pay As You Go (aggregate amount calculation based on all completed journeys at the end of the selected billing period like end of the day or month)
Check icon
Ability to define and create a variety of tariff types based on rules such as travel bus stop, zones, distance and time regarding the collected information about the journey like day of the week, entry/exit stop, etc.
Check icon
Cooperation with an acquirer for transaction processing that includes debt recovery
Check icon
Device user interface design and configuration (screen layout, language support, audio messages)
Check icon
Advertisements and announcements management
Check icon
Beacons configuration
Check icon
Remote device connection, monitoring and diagnostics, locking and unlocking
Check icon
Distribution of the validator and ticket machine software updates
Check icon
Transaction data reporting
Check icon
Payment data tokenization, PA-DSS and PCI DSS certification is not required

Supply voltage

24V DC (+/- 30%)

Nominal/maximum current

0.8A / 3A

Power consumption

Max. 20W (depending on configuration)

Communication

Ethernet or RS485 (option)

Interfaces (optional)

Wi-Fi, GPS, GSM

Operating system

Linux

Display

7" TFT LCD colour touch screen with 1024 x 600 resolution. Automatic and manual brightness adjustment

Flash memory

Min. 16GB

Loudspeaker

Max. 2W, MP3 and WAV audio files playback

Optical indicator

RGB LED backlit frame. Configurable colour depending on transaction status or device lock state

Operating temperature range

From -25°C to +70°C

Contactless card reader

EMV contactless payments MIFARE, DESFire, Java Card and FeliCa card families (ISO/IEC 14443 1-4, type A and B)

Beacon

iBeacon mode, configurable advertising interval and broadcasting power

2D code scanner (optional)

Resolution 1280x800 pixels, scans 2D (QR, AZTEC) and 1D (barcode) codes

Paper ticket stamper (optional)

High speed and configurable dot-matrix printer (9-pin print head). Replaceable ribbon

Paper ticket slot width

Adjustable from 32 to 38 mm. Colour LED backlight

Additional stamper function (optional)

Ticket punching

Housing

Plastic material, polycarbonate (PC)

Dimensions (without holder)

350 mm x 165 mm x 112 mm (height x width x depth)

Device protection

Patent lock, tamper and lock on event detection

Weight

Up to 3kg (depending on configuration)

Certifications and Standards

UNECE Regulation 10.06, IP54 (according to EN 60529)

Security

Built-in security module (Common Criteria EAL 6+ certification). Algorithms and protocols such as ECDSA, ECDH, ECDHE, ECDAA, EdDSA, RSA, AES, HMAC, CMAC, SHA-2 family, HKDF, PBKDF2, TLS and MIFARE

SAM modules

Two slots for ISO/IEC 7816 compliant smart cards
